EOZ Infrared Extension Modules
EOZ Infrared Extension Modules
Model: MMIR-306
The I-Luxus IR Gateway module is an extention module of I-Luxus EOZ Touch Panel. It is a gateway between infrared signal modules and EOZ. All IR signals can be learned with its infrared sensor. Consequently, learned IR signal sends to the related device. It has 6 independent IR Output channels. User can manage six devices over EOZ Touch Panel at the same time. The I-Luxus IR Gateway opens a new window to remote control.
Specifications:
- 6 IR Outputs
- Learn IR sensor
- Learn button
- Status LED
- Certified to ISO 9001

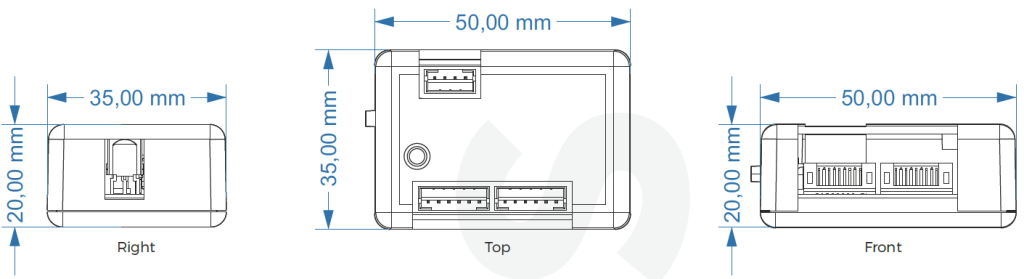

Dimensions:

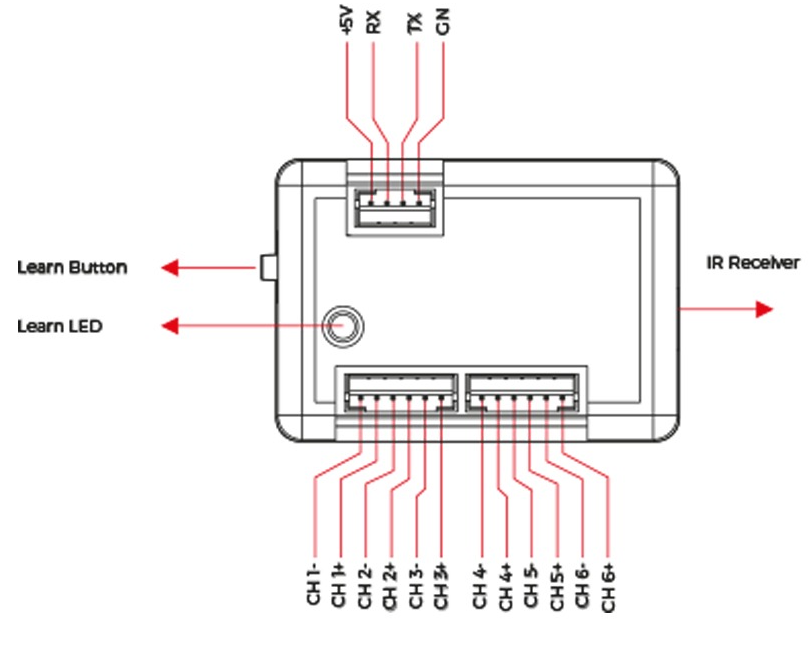

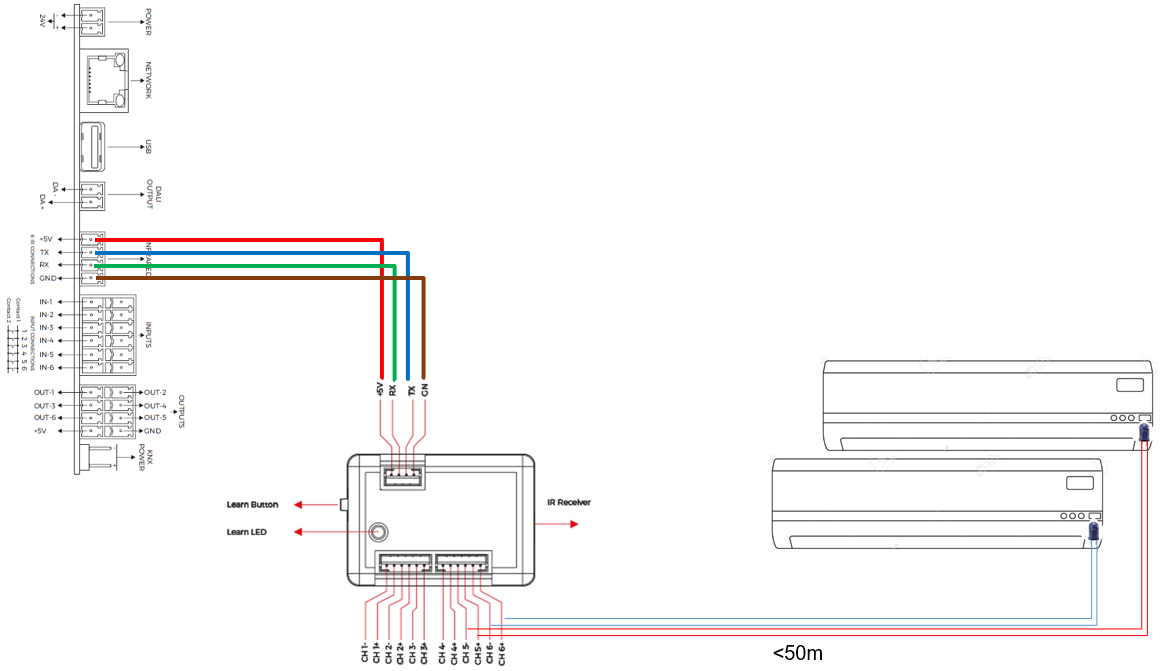

Connection
