EOZ KNX 10.1″ KNX Touch Panel

EOZ KNX 10.1ꞌꞌ KNX Touch Panel

Model: MM310

The I-Luxus capacitive touch screen EOZ with 10.1” is build for all smart devices communication with KNX Lighting, shutters/blinds and HVAC operations, intercom, concierge services, timers, weather forecast, announcements, sensors and alarms are supported.

EOZ panel brings conveniences to your management and navigation.

Specifications:

  • 10.1″ capacitive touch panel
  • 6 dry contact inputs
  • 3 / 6 optional Outputs for relay (Optional)
  • 6 Infrared LED Outputs (Optional)
  • RS 485 Output
  • 1x USB HOST/OTG
  • Ethernet connection (Rj45) 1 Gbit/s
  • Wi-Fi 150 Mbps
  • Complete data saving in case of power failure
  • Android6 operating system
  • Built in microphone and speakers
  • Lighting, air-conditioning, heating/cooling, valves, shutter/blind, intercom, concierge services, timer, scenarios, weather forecast, security sensors, alarms, IP cameras, SIP video door phone properties
  • Conformity with the CE

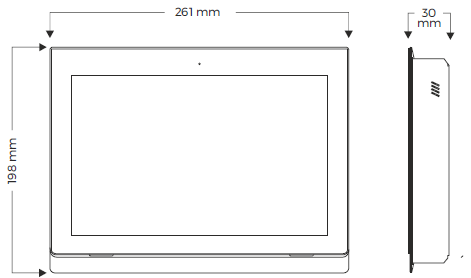

Dimensions:

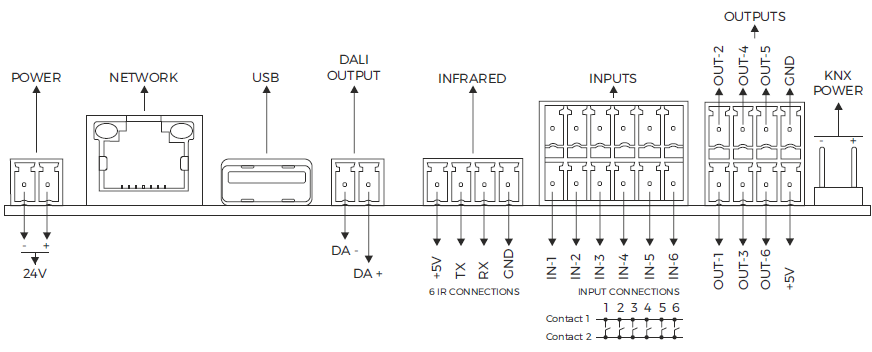

Connection
