EOZ Output Extension Modules
EOZ Output Extension Modules
Model: MM303 – 3output
MM306 – 6output
The I-Luxus 3/6 output module is an extention device of EOZ Touch Panel. It is like a gateway between EOZ and ON/OFF modules. With 3 or 6 outputs, up to 3 or 6 ON/OFF devices can be controlled over EOZ. It supports up to 5A load current. Also, with up to AC 277V voltage input, the device has wide range of voltage switching capacity.
Specifications:
- 3 or 6 ON/OFF outputs
- Wide range of voltage switching capacity (up to AC 277V)
- Up to 5A load current
- 0.205-1.31 mm2 solid wire or stranded wire cable connections
- Certified to ISO 9001

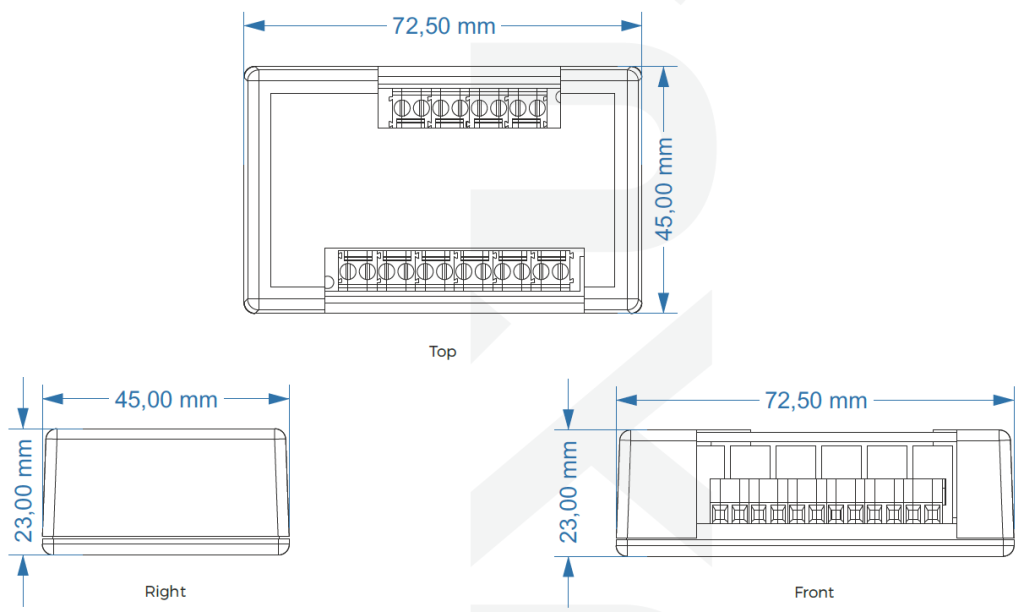

Dimensions:

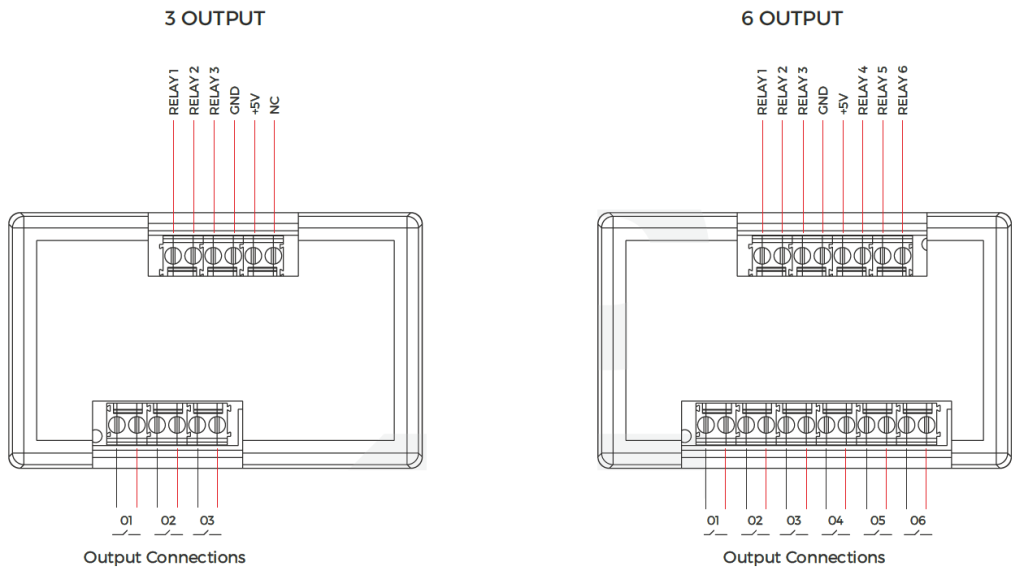

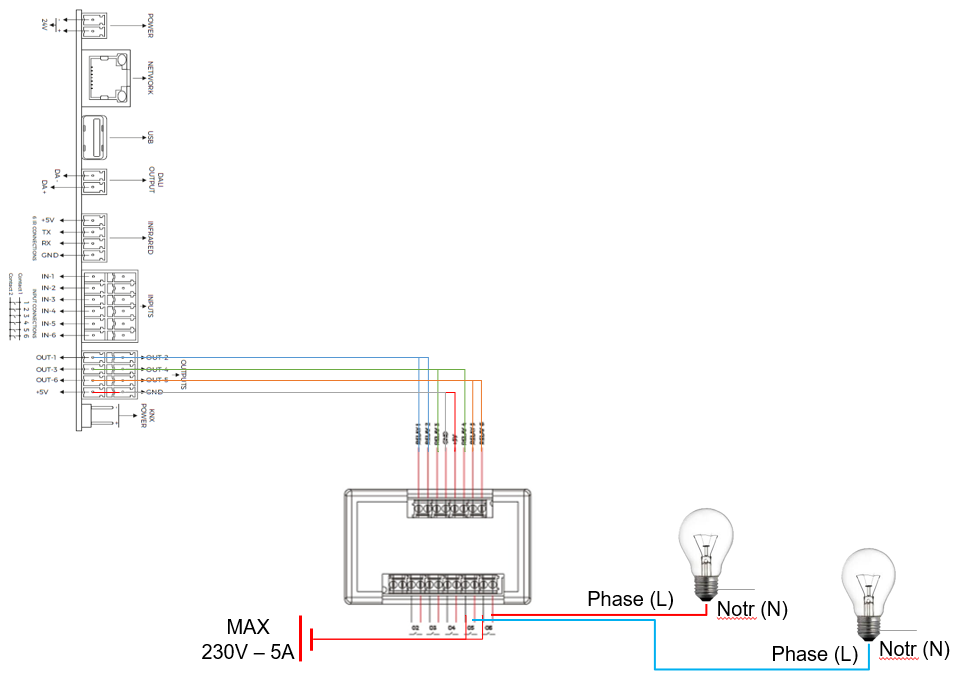

Connection
