KNX Analog IO (0-10V 4 X analog outputs, 4X digital inputs)
KNX Analog IO (0-10V 4 X analog outputs, 4X digital inputs)

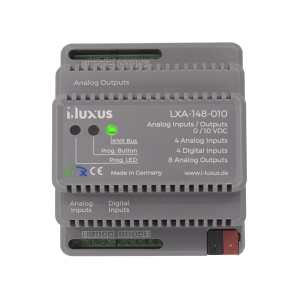

model：LXA-148-010
The I-Luxus 0…10V Module with 4 analog outputs can be used for 0-10V LED drivers for dimming operations or 0…10V operational valves for HVAC operations. It has 4 analog inputs, PT1000 sensors and 0…10V voltage connections are supported. Included 4 digital inputs, can be connected as dry contact.
Specifications
- 4 Analog output channels DC 0-10V
- 4 Analog input channels
- 4 Digital input channels
- Dimming operations
- HVAC operations
- Configurable with ETS
- Programming LED and buttons
- KNX Bus LED
- Sensor connections: PT1000 (Brightness, Temperature, Rain, Humidity,Wind, etc.)
- Feedback operations (only in bus operation)
- Easy installation to 35mm DIN Rail
- Conformity with the CE

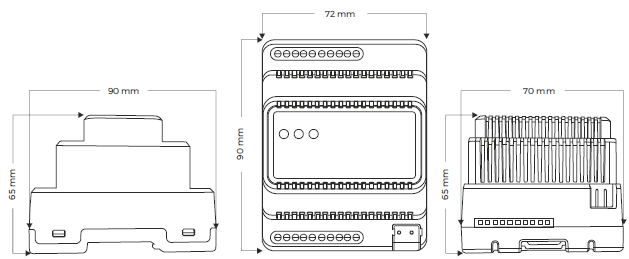

Dimensions

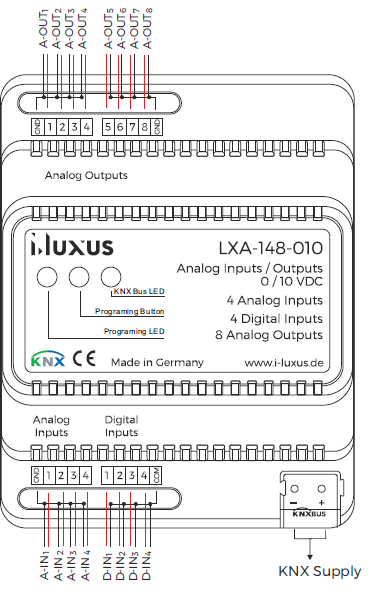

Connection
