Description

Functional description

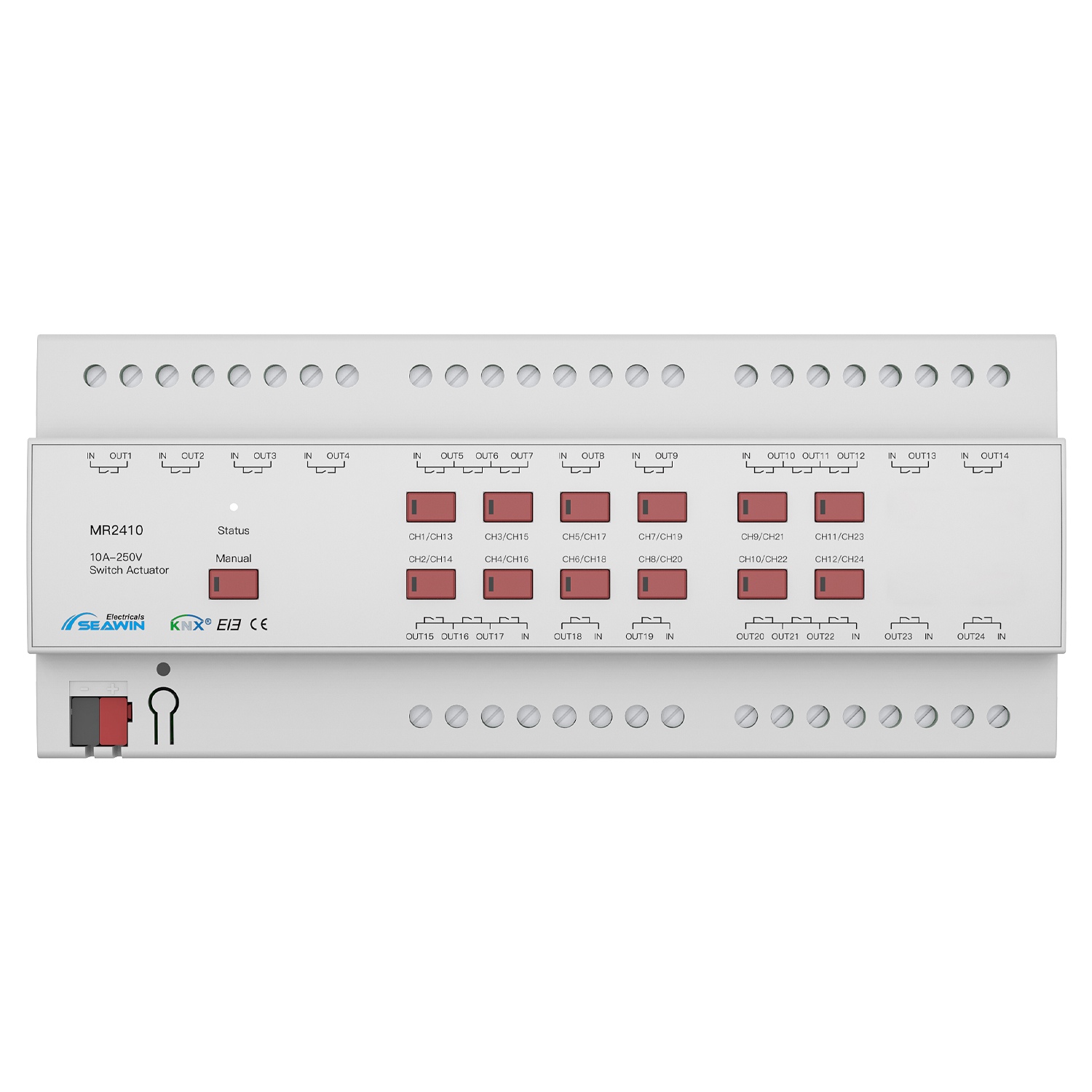

Switch Output

(1) Independently control 24 loop lamps/loads;

(2) With manual switch control;

(3) With relay magnetic latching function;

(4) With delay on/off function;

(5) It has the function of timing off and cycle switch;

(6) With on-site save and restore functions;

(7) It has the function of status value query and reply;

(8) It has scene combination control and scene learning functions;

(9) With logic operation function;

(10) With interlocking group function and channel lock function;

(11) It has the function of recording the number of relay operations;

(12) It has the function of selecting the relay switch state after bus power failure and voltage recovery;

(13) It has an I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, and scenes, and can directly link fire emergency lighting;

FCA Output

(1) With 4 independent outputs;

(2) With manual switch control;

(3) With relay magnetic latching function;

(4) With delay on/off function;

(5) Control the 4-control and 2-control fan coil units;

(6) It can output heating and cooling according to automatic or manual control, and has the interlock function of heating and cooling;

(7) According to the automatic or manual control of high, medium and low wind speed, it has the function of wind speed interlocking;

(8) Selection function of relay switching state after bus power failure and voltage recovery;

(9) The local wind speed and valve status can be reported;

(10) It has an I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, and scenes, and can directly link fire emergency lighting;

Curtain Output

(1) With 12 independent outputs;

(2) With manual switch control;

(3) Scene combination control function can be set;

(4) With on-site save and restore functions;

(5) Status value query and reply function;

(6) The selection function of the relay switch state after the bus voltage is restored;

(7) It is possible to set the time interval to cycle open or close;

(8) It has an I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, and scenes, and can directly link fire emergency lighting;

(9) Scope of use: opening and closing curtains, projection screens, venetian blinds, rolling shutters, lifters, etc.;

Parameter
