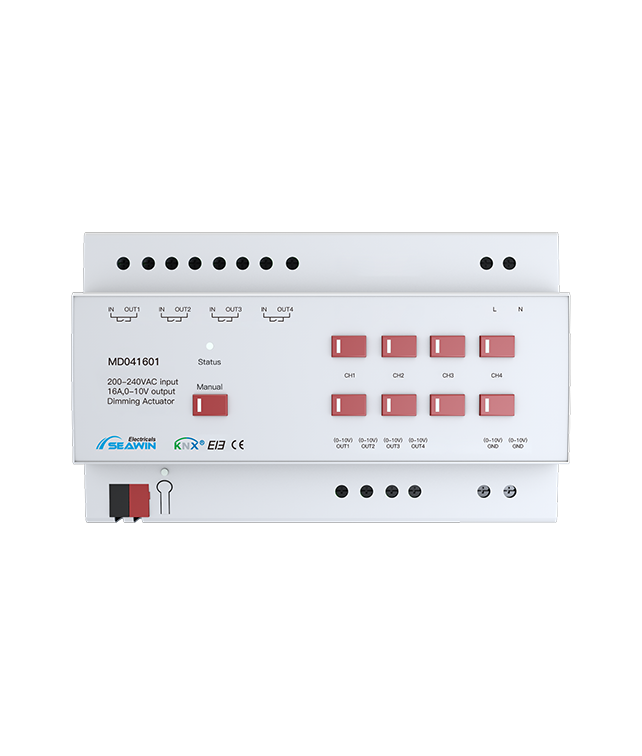

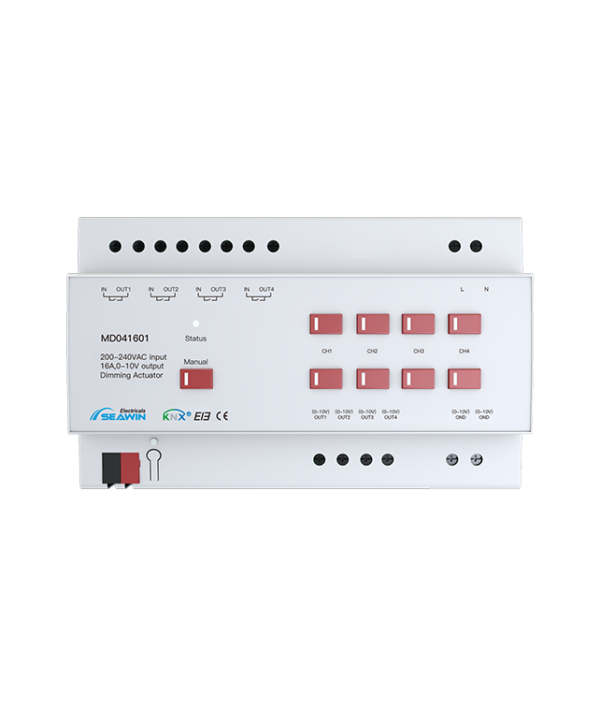

Description

Functional description

(1) With 4-way 0-10V dimming interface;

(2) With 4-way 16A switch control;

(3) With manual control dimming function;

(4) With relative dimming function and absolute dimming function;

(5) With status report feedback function;

(6) With timing cycle function, it can realize stair light control and cycle flashing control;

(7) With on-site save and restore functions;

(8) Selection function of dimming output value and relay switching state after bus power failure and voltage recovery;

(9) With scene control function

(10) 4-way I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, scenes, and fire protection;

(11) Scope of application: For all kinds of lamps driven by 0-10V dimming interface (downlight, spotlight, wall light, light strip, fluorescent lamp, etc.), for control equipment with 0-10V interface (0- 10V interface air conditioner, 0-10V fan coil unit, 0-10V fresh air system, etc.)

(12) I/O cable wiring distance: ≤10m
