Description
Functional description

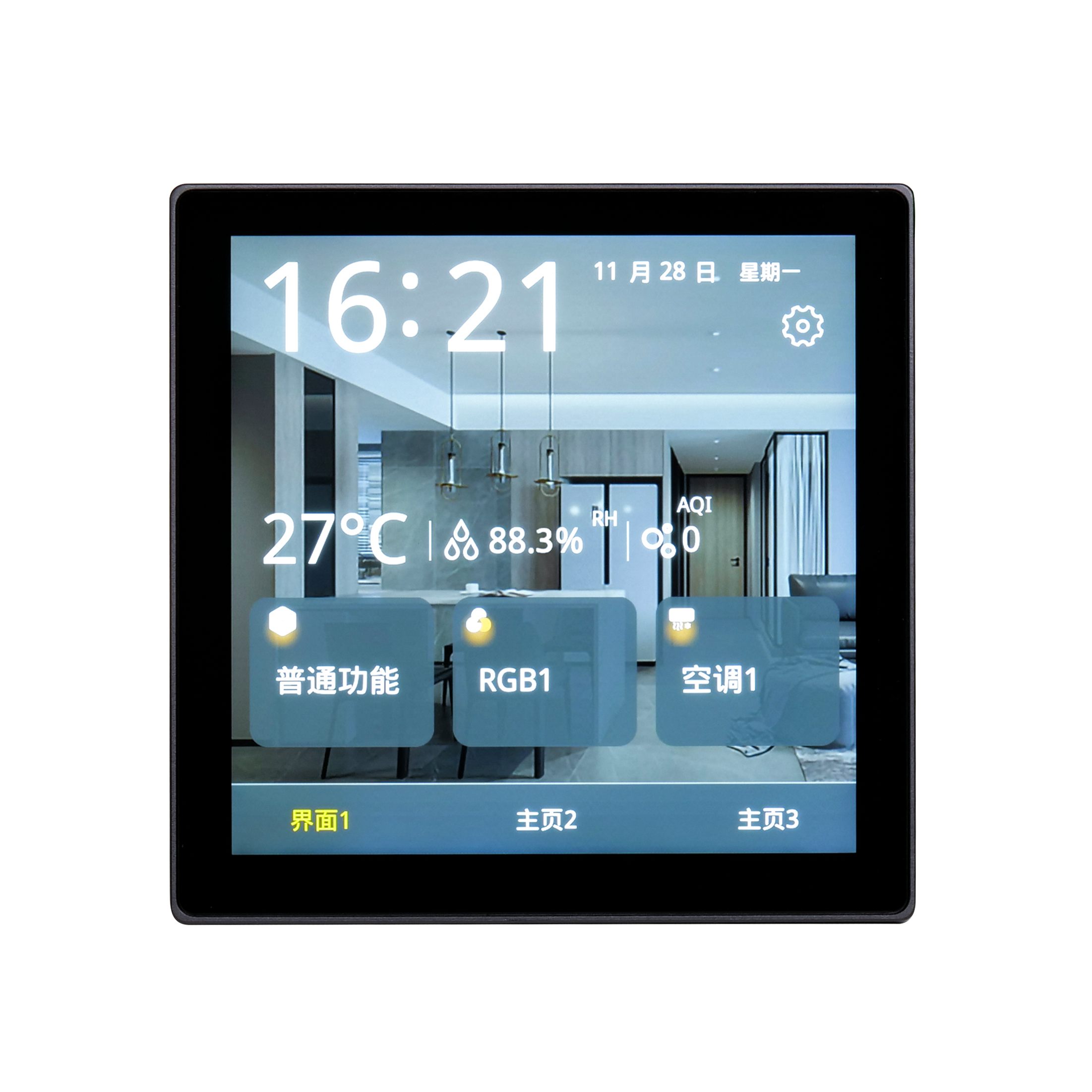

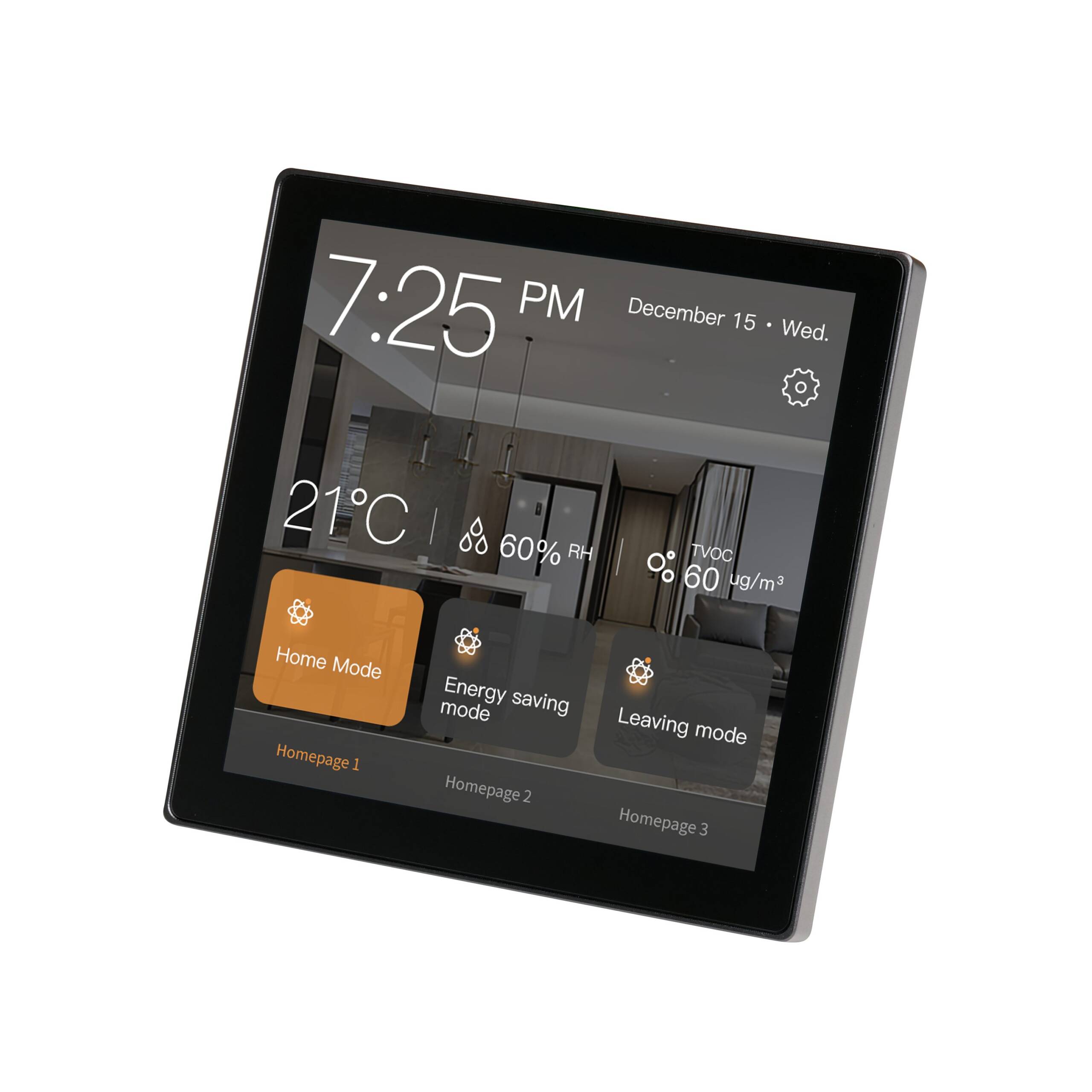

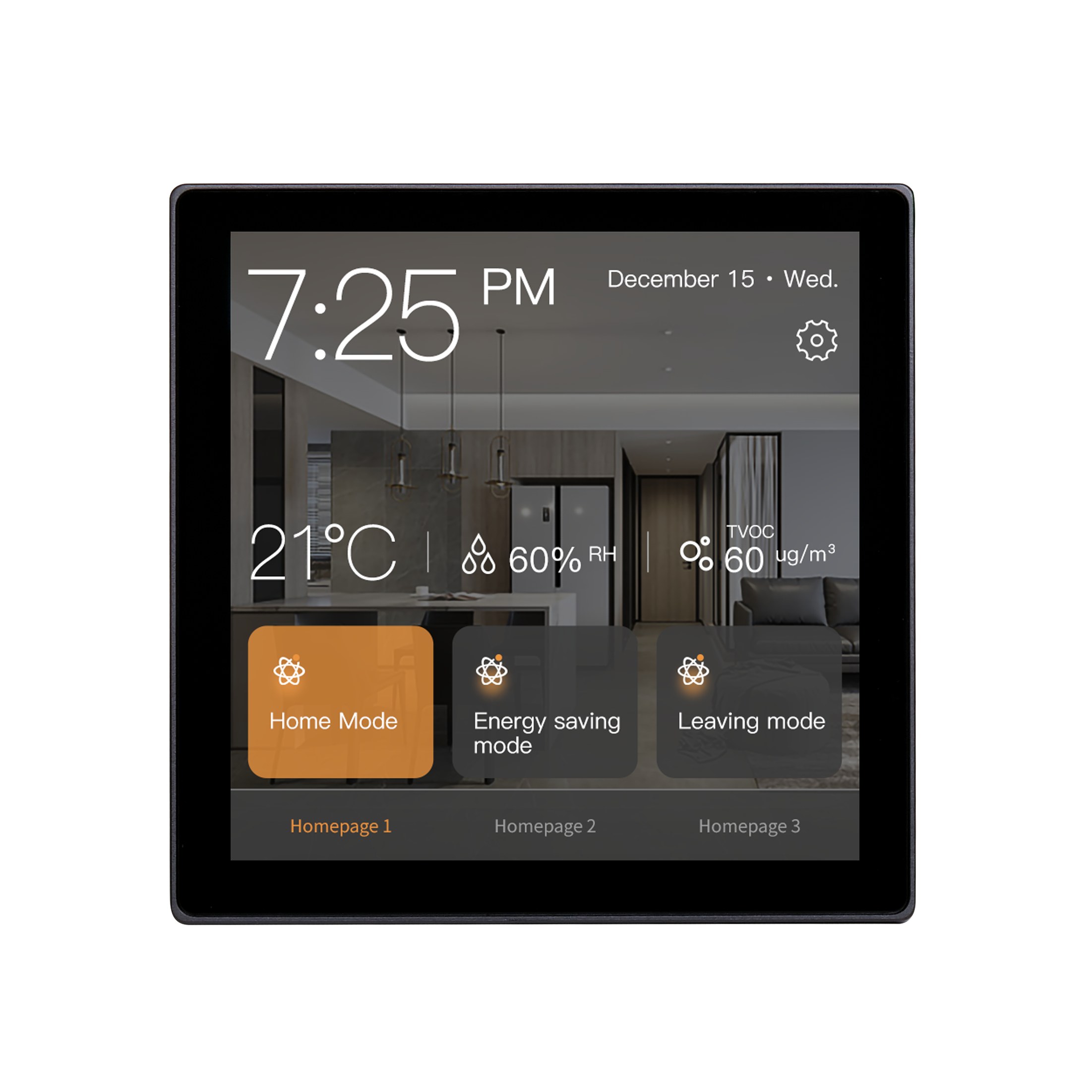

(1) 4-inch high-definition true color capacitive touch
(2) Resolution: 720×720
(3) Support multiple control interface setting definitions
(4) Support main page and sub-page
(5) Support light switch, scene, dimming, curtain, air conditioner, fresh air, floor heating, background music, power management, timing and other functions
(6) Support Chinese/English display on the screen
(7) KNX/EIB bus communication
Parameter
| Bus voltage: | 21-30V DC, powered by KNX bus |
| Auxiliary voltage: | 24V DC |
| Bus current: | ≤12 mA |
| Auxiliary current: | ≤45mA |
| Bus power: | ≤ 360mW |
| Temperature detection accuracy: | ±0.5 ℃ |
| Working temperature: | -5°…+45°C |
| Storage temperature: | -25°…+55°C |
| Transport temperature: | -25°…+70°C |
| Relative humidity: | Max 90% |
| Dimensions (H x W x D): | 86mm x 93mm x 7.3mm |
| Installation method: | 86 box installation |
