Description
Functional description
(1) Illumination value cycle output function
(2) 2 channels of illumination control channels, which can output 1bit, 4bit, 1byte data
(3) Infrared mobile trigger control function
(4) Infrared movement and brightness logic function
(5) Infrared mobile master-slave function
(6) Enable or disable the illumination and infrared movement channel control output function through the object
(7) Combined use of illuminance and movement to jointly control the function of light

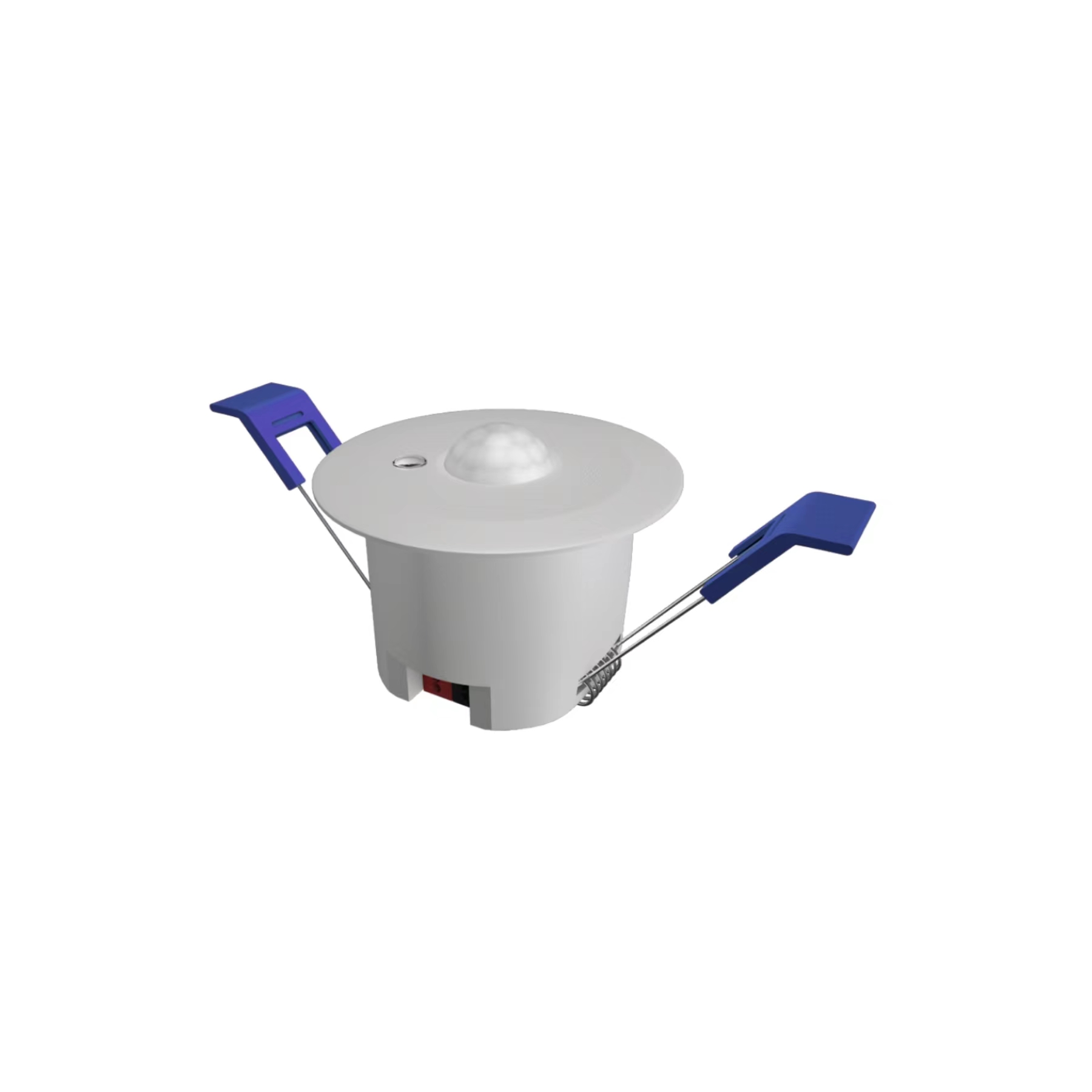

(8) Infrared movement and illumination two-in-one sensor
Parameter
| Bus voltage: | 21-30 VDC, powered by KNX bus |
| Bus current: | ≤12mA |
| Bus power: | ≤ 360mW |
| Hole diameter: | Φ46mm≤d≤52mm |
| Shell material: | ABS |
| Working temperature: | -5°~+45°C |
| Storage temperature: | -25°~+55°C |
| Transport temperature: | -25°~+70°C |
| Relative humidity: | Max 90% |
| Sensing distance: | installation height 2.5m~3.5m |
| Radiation range | 5m~7m |
| Installation method: | Ceiling embedded installation |
| Dimensions (H x D): | H=45mm Diameter=60mm |
