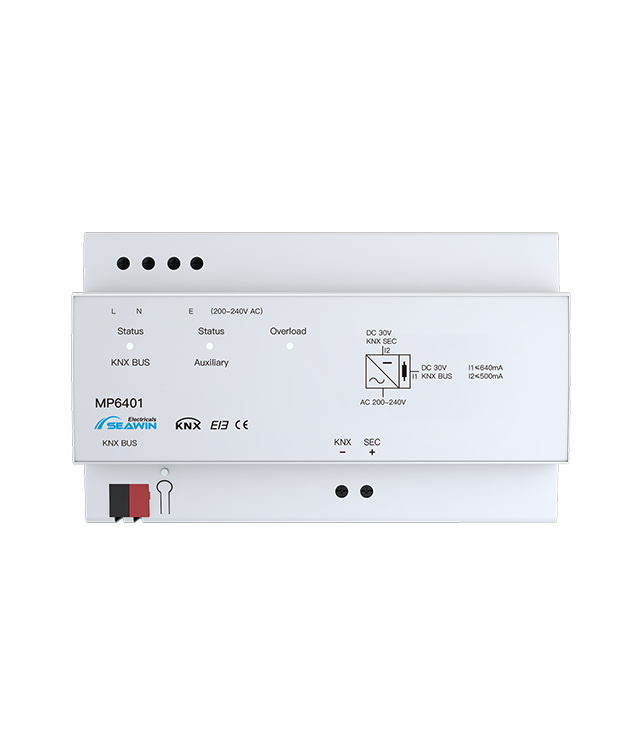

Description
Functional description
(1) Meet the power supply of KNX/EIB bus equipment;
(2) The 1st and 2nd auxiliary outputs share a yellow-green status LED. When the status LED is always on, it means that the auxiliary power supply is normal. When the status LED flashes, it means that either or both of the auxiliary power supplies are overloaded.
(3) The red LED is always on to indicate that the KNX bus output exceeds the rated current of 640mA. When the KNX bus output current exceeds 900mA, the bus output is automatically cut off and the red LED flashes. Press the reset button to restore;
Parameter
| Input voltage: | 200-240VAC, 50/60Hz |
| KNX/EIB output: | With reactor, 30VDC +1/-2V, 640mA Max |
| 1st auxiliary output: | 30VDC, 500mA Max |
| 2st auxiliary output: | 12VDC, 300mA Max |
| Output total rated current: | 640mA, short circuit protection |
| Continuous short circuit current: | <1.3A |
| Power-down output maintenance time: | >200ms |
| Working temperature: | -5°…+45°C |
| Storage temperature: | -25°…+55°C |
| Transport temperature: | -25°…+70°C |
| Shell material: | PA66 |
| Relative humidity: | Max 90% |
| Dimensions (L x W x H): | 144mm x 90mm x 64mm |
| Installation method: | 35mm DIN rail installation |
