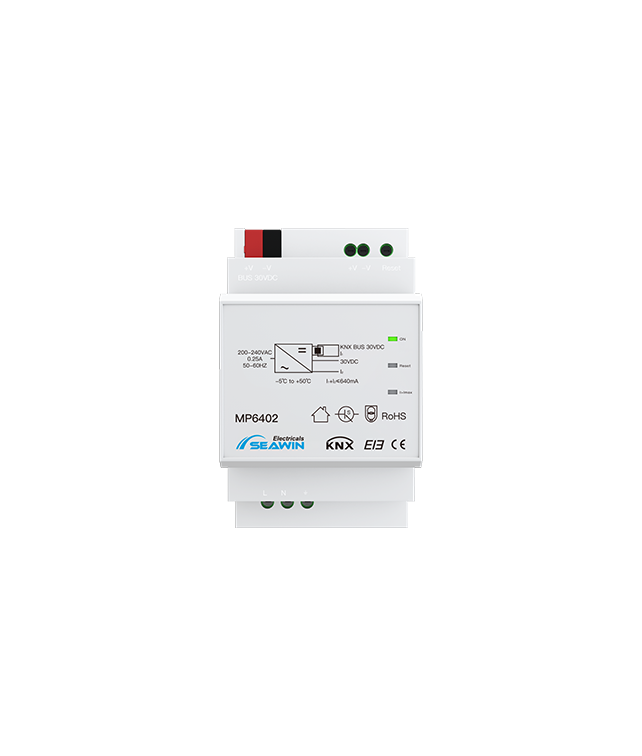

Description
Functional description
(1) Meet the power supply of KNX/EIB bus equipment;
(2) Output short-circuit, over-current, over-voltage protection, LED working status indication, can display normal work, overload, reset;
(3) LED1 (ON) green indicates normal operation, LED2 (Reset) red indicates reset, LED3 (I>Imax) red indicates output overcurrent and short circuit;
(4) There is a button to reset, and the button must be pressed for at least 20 seconds to reset;
Parameter
| Input voltage: | 200-240VAC, 50/60Hz |
| Power loss: | ≤6W, efficiency 75% |
| KNX/EIB output: | 30V DC +1/-2V, SELV, with reactor |
| Auxiliary power supply output: | 30V DC +1/-1V, SELV, without reactor |
| Output total rated current: | 640mA, short circuit protection |
| Power-down output maintenance time: | >150ms |
| Working temperature: | -5°…+45°C |
| Storage temperature: | -25°…+55°C |
| Transport temperature: | -25°…+70°C |
| Shell material: | PA66 |
| Relative humidity: | Max 90% |
| Dimensions (L x W x H): | 52mm x 90mm x 58mm |
| Installation method: | 35mm DIN rail installation |
