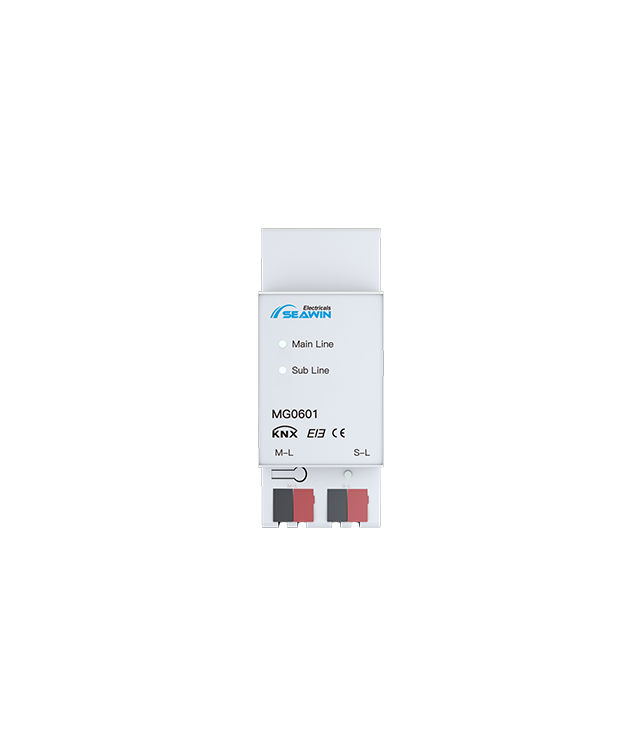

Description
Functional description
(1) It can be used as a KNX branch line coupler to filter messages and reduce bus load;
(2) It can be used as a KNX repeater to extend the KNX branch line
(3) Support KNX topology branch network
Parameter
| Bus voltage: | 21-30 VDC, powered by KNX bus |
| Auxiliary voltage: | 24 V DC |
| Bus current: | ≤12mA |
| Bus power: | ≤360mW |
| Function interface: | 2-way KNX/EIB interface |
| Working temperature: | -5°…+45°C |
| Storage temperature: | -25°…+55°C |
| Transport temperature: | -25°…+70°C |
| Relative humidity: | Max 90% |
| Shell material: | PA66 |
| Dimensions (L x W x H): | 38mm x 90mm x 64mm |
| Installation method: | 35mm guide rail installation |
