Description
Functional description
(1) Infrared mobile trigger control function
(2) Infrared mobile logic function
(3) Infrared mobile master-slave function
(4) Open the infrared mobile channel control output function through the object
(5) Infrared mobile control light function

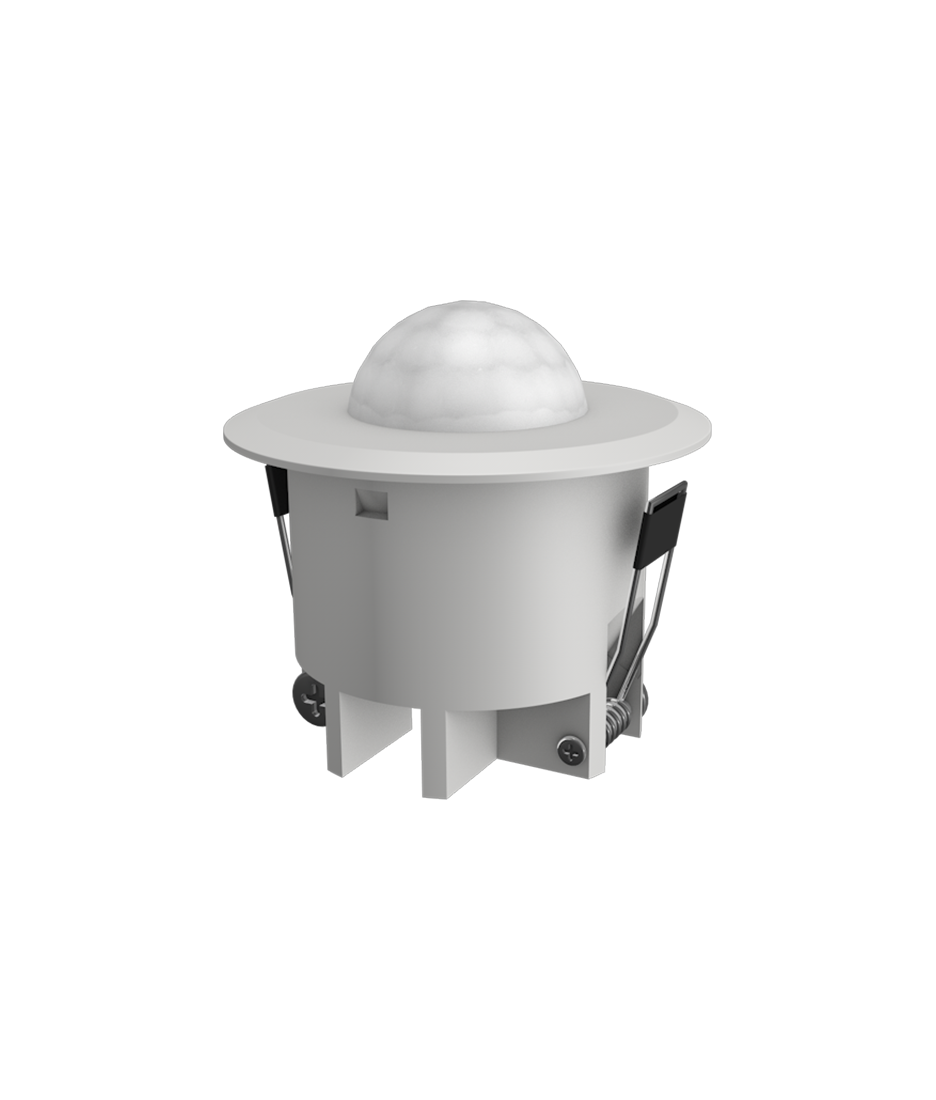

(6) Small infrared motion sensor
Parameter
| Bus voltage: | 21-30 VDC, powered by KNX bus |
| Bus current: | ≤12mA |
| Bus power: | ≤ 360mW |
| Hole diameter: | Φ31mm≤d≤35mm |
| Shell material: | ABS |
| Working temperature: | -5°~+45°C |
| Storage temperature: | -25°~+55°C |
| Transport temperature: | -25°~+70°C |
| Relative humidity: | Max 90% |
| Sensing distance: | installation height 2.5m~3.5m |
| Radiation range | 5m~7m |
| Installation method: | Ceiling embedded installation |
| Dimensions (H x D): | Height H=40mm Diameter=40mm |
